Thermal Greases

TG-106

Alumina Heat Sink Thermal Grease

Quantity
For bulk orders, please contact us.
Custom packaging available upon request.

DESCRIPTION

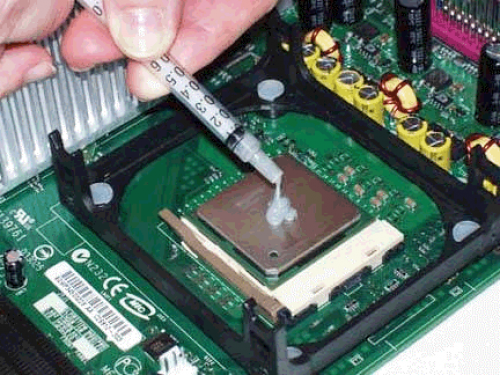

TG-106 is a silicone base grey heat sink grease compound, which is applied to the base and mounting studs of transistor and diodes to provide a positive heat sink seal, this facilitates heat transfer away from electrical/electronic components and into heat sinks, thereby increasing the overall efficiency and performance of the device.

TG-106 is grease like silicone material, heavily filled with efficient heat conductive Aluminum oxide and a binding agent, this combination promotes high thermal conductivity, high temperature stability, and the lowest amount of bleed and evaporation.

BONDS TO
  • Low cost
  • Excellent thermal conductivity
  • Zero VOC
  • Non-sag
  • Non-toxic
APPLICATIONS INCLUDE
CPU
Heat Sink
Semiconductors
Telecommunications
Thermal Joints
Properties
Color Grey
Press flow @ 42.5 psi, 25°C sec 20
Evaporation  24 hrs @25°C, % 0
Bleed 24 Hours,% 0.6
Penetration (Worked), mm 285 1/10
Thermal Properties
Thermal Conductivity , W/m-k 1.65
Operating Temperature Range, °C -60 to 205
Electrical Properties
Volume Resistivity, ohm=cm  3x1014
Dielectric Strength, volts/mil (ASTM D 150) 380
Dissipation Factor @ 100Hz (ASTM D150) 0.0022
